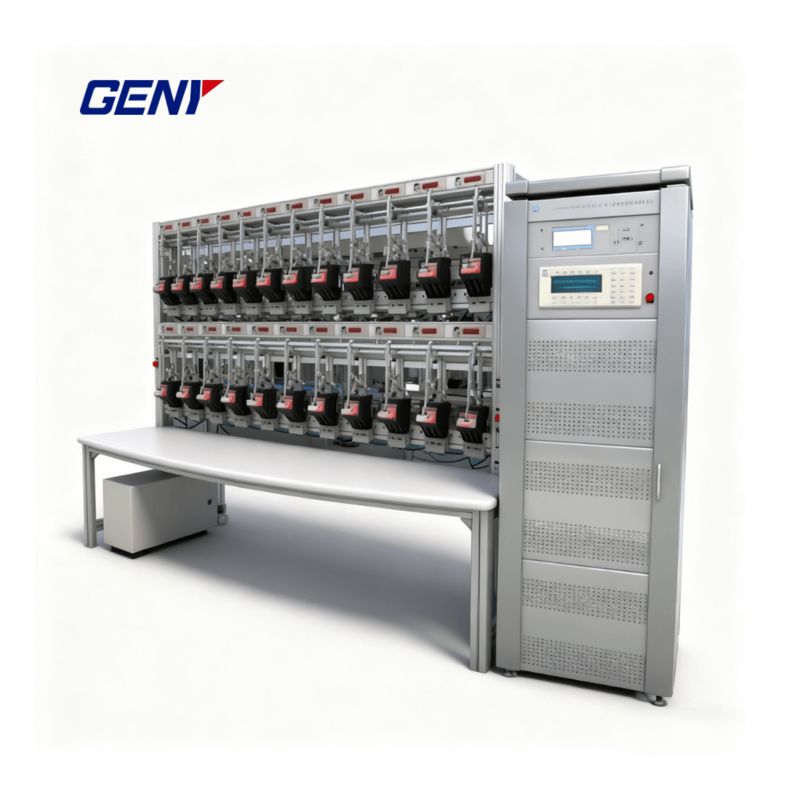

GENY Precision Single-Phase Energy Meter Calibration & Test Platform

GENY Precision Single-Phase Energy Meter Calibration & Test Platform

High-accuracy single-phase energy meter test bench for mechanical, electromechanical, and electronic meters. Accuracy up to 0.01%, 3–48 meter positions, MSVT closed-link testing, harmonic & influence tests, RS232/Ethernet communication. Ideal for utilities, metrology labs, and meter manufacturers.

Description

1. Universal Meter Compatibility

   • Supports mechanical, electromechanical, and electronic single-phase meters

   • Operable in automatic, semi-automatic, or manual mode to meet all laboratory and production needs

2. Meter Type Under Testing

   • 1P2W single-phase meters

3. Comprehensive Testing Modes

   • Active power, reactive power, cross-connected reactive power

   • Optional neutral current testing for advanced evaluation

4. MSVT Closed-Link Testing

   • Enables accurate testing of single-phase meters with closed links between current and voltage circuits (I-P links)

5. Two-Element Meter Calibration (Optional)

   • Current output switch allows calibration of 2-element meters

6. Simultaneous Multi-Meter Measurement

   • Test multiple meters of the same specifications but with different meter constants simultaneously

7. High-Efficiency Mechanical Meter Testing

   • Automatic rotor mark positioning for mechanical meter discs increases testing efficiency

   • Supports starting and creeping tests

8. Advanced Protection Features

   • Overload protection

   • Short-voltage circuit protection

   • Open-current circuit protection

9. Intelligent Scanning System

   • Synchronized swinging scanning heads simplify multi-meter control and alignment

10. Industrial-Grade Construction

    • Aluminum alloy structure: lightweight, strong, and corrosion-resistant for long-term durability

11. Advanced Testing Software

    • Windows-based (2000 / XP / 7 / 8 / 10 compatible)

    • Includes functional modules for error testing, harmonic testing, demand testing, influence testing, and all modern energy meter requirements

    • Real-time data acquisition, automated report generation, and multi-language support
